Mounting Type

Surface Mount

Package / Case

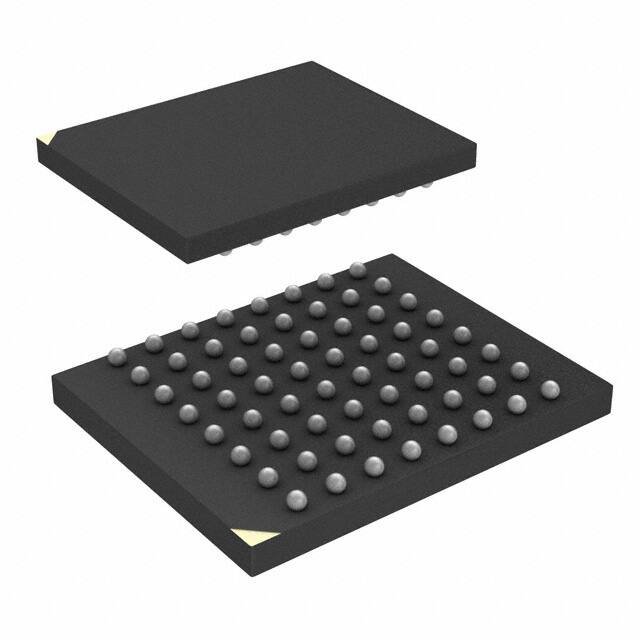

64-TBGA

Surface Mount

YES

Number of Pins

64

Memory Types

Non-Volatile

Current - Supply (Nom)

31mA

Operating Temperature

-40°C~85°C TC

Packaging

Tray

Series

Axcell™

Published

2009

JESD-609 Code

e1

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

64

ECCN Code

3A991.B.1.A

Terminal Finish

TIN SILVER COPPER

HTS Code

8542.32.00.51

Voltage - Supply

3V

Terminal Position

BOTTOM

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

1mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

28F256P33

Power Supplies

2.5/3.3V

Voltage

2.3V

Interface

Parallel, Serial

Memory Size

256Mb 16M x 16

Clock Frequency

52MHz

Memory Format

FLASH

Memory Interface

Parallel

Organization

16MX16

Memory Width

16

Write Cycle Time - Word, Page

95ns

Address Bus Width

24b

Density

256 Mb

Standby Current-Max

0.00021A

Access Time (Max)

95 ns

Sync/Async

Asynchronous

Word Size

16b

Data Polling

NO

Toggle Bit

NO

Number of Sectors/Size

4255

Boot Block

BOTTOM

Length

13mm

Height Seated (Max)

1.2mm

Radiation Hardening

No

RoHS Status

Non-RoHS Compliant
