Mounting Type

Surface Mount

Package / Case

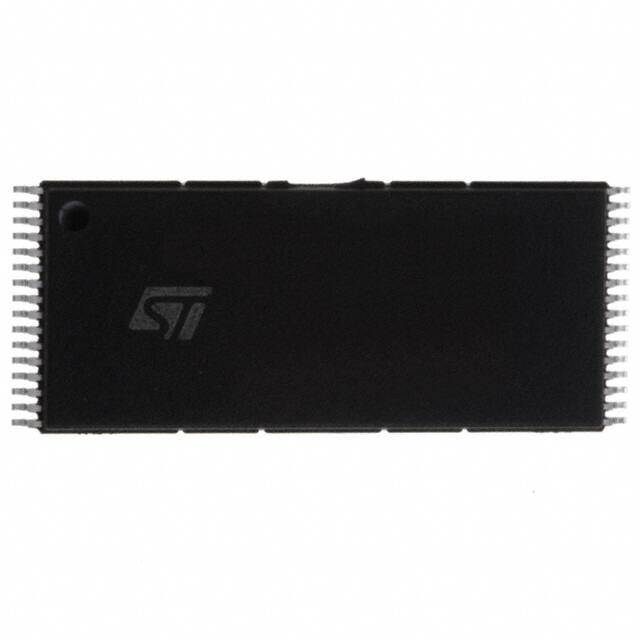

32-TFSOP (0.724, 18.40mm Width)

Surface Mount

YES

Memory Types

Non-Volatile

Operating Temperature

0°C~70°C TA

Packaging

Tray

JESD-609 Code

e0

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

32

ECCN Code

EAR99

Terminal Finish

TIN LEAD

HTS Code

8542.32.00.51

Voltage - Supply

4.5V~5.5V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

0.5mm

Reach Compliance Code

unknown

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

M29F010

Pin Count

32

JESD-30 Code

R-PDSO-G32

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

5.5V

Power Supplies

5V

Supply Voltage-Min (Vsup)

4.5V

Memory Size

1Mb 128K x 8

Operating Mode

ASYNCHRONOUS

Memory Format

FLASH

Memory Interface

Parallel

Data Bus Width

8b

Organization

128KX8

Memory Width

8

Write Cycle Time - Word, Page

70ns

Standby Current-Max

0.0001A

Memory Density

1048576 bit

Access Time (Max)

70 ns

Programming Voltage

5V

Endurance

100000 Write/Erase Cycles

Data Polling

YES

Toggle Bit

YES

Command User Interface

YES

Number of Sectors/Size

8

Sector Size

16K

Length

18.4mm

Height Seated (Max)

1.2mm

RoHS Status

ROHS3 Compliant
