Mount

Through Hole

Mounting Type

Through Hole

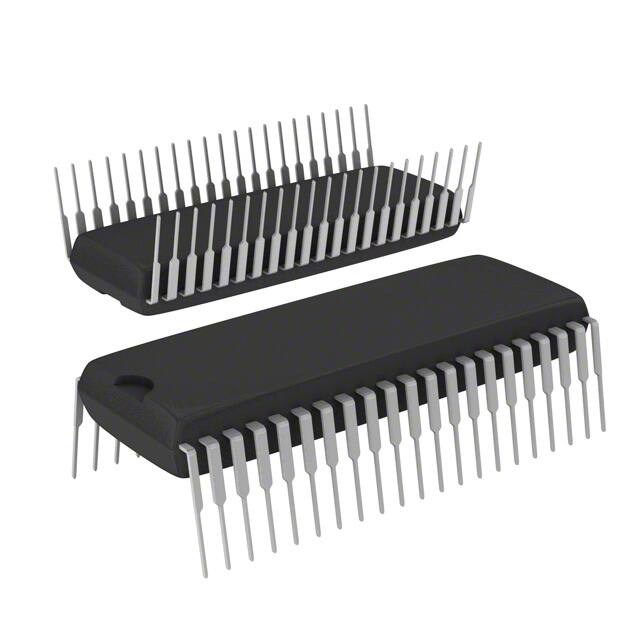

Package / Case

42-DIP (0.600, 15.24mm)

Number of Pins

42

Memory Types

Non-Volatile

Operating Temperature

0°C~70°C TA

Packaging

Tube

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

42

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Additional Feature

CONFIGURABLE AS 1M X 16

Voltage - Supply

4.5V~5.5V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

245

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

M27C160

Pin Count

42

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

5V

Memory Size

16Mb 2M x 8 1M x 16

Nominal Supply Current

70mA

Operating Mode

ASYNCHRONOUS

Access Time

100ns

Memory Format

EPROM

Memory Interface

Parallel

Organization

1MX16

Output Characteristics

3-STATE

Memory Width

16

Density

16 Mb

Standby Current-Max

0.0001A

I/O Type

COMMON

Alternate Memory Width

8

Length

52.455mm

Height Seated (Max)

5.08mm

Width

15.24mm

RoHS Status

ROHS3 Compliant
