Mounting Type

Surface Mount

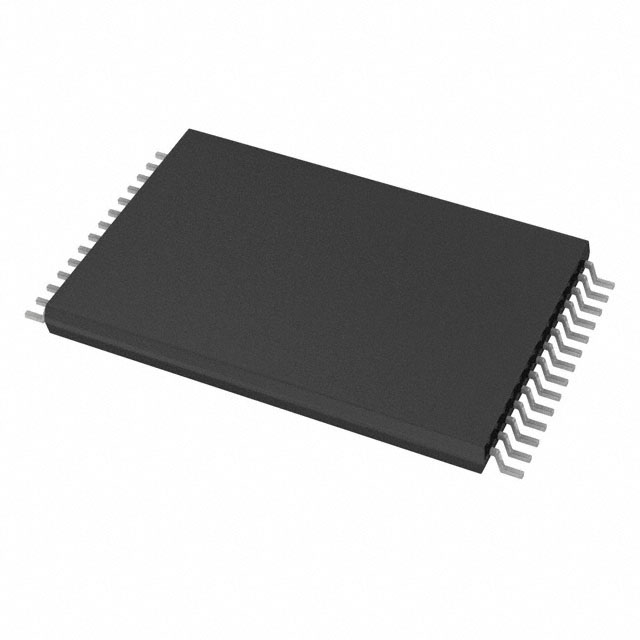

Package / Case

28-TSSOP (0.465, 11.80mm Width)

Surface Mount

YES

Memory Types

Non-Volatile

Operating Temperature

-40°C~85°C TC

Packaging

Tray

Published

2000

JESD-609 Code

e0

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

28

ECCN Code

EAR99

Terminal Finish

TIN LEAD

Additional Feature

HARDWARE DATA PROTECTION

HTS Code

8542.32.00.51

Voltage - Supply

2.7V~3.6V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

3V

Terminal Pitch

0.55mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

AT45DB021

JESD-30 Code

R-PDSO-G28

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

3.6V

Power Supplies

3/3.3V

Supply Voltage-Min (Vsup)

2.7V

Memory Size

2Mb 264Bytes x 1024 pages

Operating Mode

SYNCHRONOUS

Clock Frequency

5MHz

Memory Format

FLASH

Memory Interface

SPI

Organization

264KX8

Memory Width

8

Write Cycle Time - Word, Page

14ms

Standby Current-Max

0.000015A

Memory Density

2162688 bit

Parallel/Serial

SERIAL

Programming Voltage

2.7V

Serial Bus Type

SPI

Write Protection

HARDWARE

Length

11.8mm

Height Seated (Max)

1.2mm

Width

8mm

RoHS Status

Non-RoHS Compliant
