Mount

Through Hole

Mounting Type

Through Hole

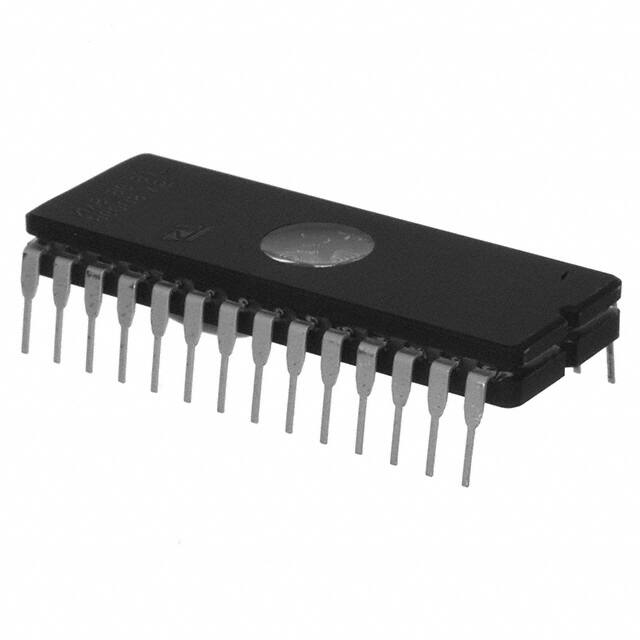

Package / Case

28-CDIP (0.600, 15.24mm) Window

Number of Pins

28

Memory Types

Non-Volatile

Operating Temperature

0°C~70°C TA

Packaging

Tube

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

28

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

HTS Code

8542.32.00.61

Voltage - Supply

4.5V~5.5V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

2.54mm

Reach Compliance Code

unknown

Frequency

120GHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

M27C256

Pin Count

28

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

5V

Memory Size

256Kb 32K x 8

Operating Supply Current

50mA

Nominal Supply Current

50mA

Operating Mode

ASYNCHRONOUS

Access Time

120ns

Memory Format

EPROM

Memory Interface

Parallel

Organization

32KX8

Output Characteristics

3-STATE

Density

256 kb

Standby Current-Max

0.0001A

I/O Type

COMMON

Height

4.5mm

Length

37.34mm

Width

13.36mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
