Mounting Type

Through Hole

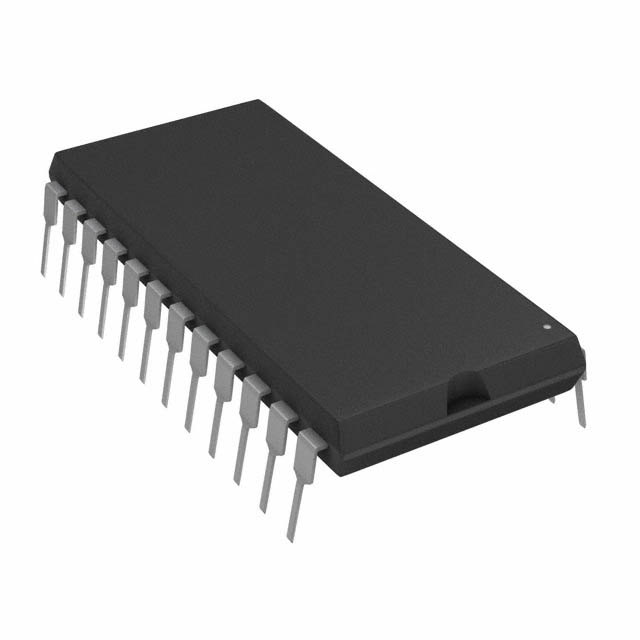

Package / Case

24-DIP (0.600, 15.24mm)

Surface Mount

NO

Number of Pins

24

Memory Types

Volatile

Operating Temperature

-40°C~85°C TA

Packaging

Tube

Published

2006

JESD-609 Code

e0

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

24

ECCN Code

EAR99

Terminal Finish

TIN LEAD

Additional Feature

ALSO OPERATES WITH 4.5V TO 5.5V SUPPLY

HTS Code

8542.32.00.41

Voltage - Supply

3V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Terminal Pitch

2.54mm

Reach Compliance Code

not_compliant

Frequency

150GHz

Time@Peak Reflow Temperature-Max (s)

20

Base Part Number

DS2016

Qualification Status

Not Qualified

Memory Size

16Kb 2K x 8

Operating Mode

ASYNCHRONOUS

Memory Format

SRAM

Memory Interface

Parallel

Organization

2KX8

Memory Width

8

Write Cycle Time - Word, Page

150ns

Memory Density

16384 bit

Access Time (Max)

250 ns

Voltage - Supply (Max)

3.5V

Voltage - Supply (Min)

2.7V

Length

31.75mm

Height Seated (Max)

5.08mm

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
