Mount

Through Hole

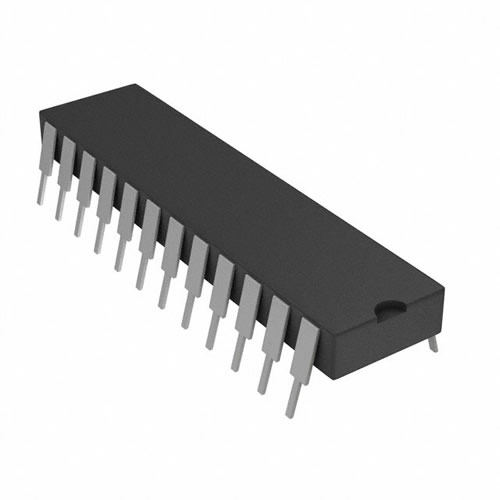

Package / Case

PDIP

Number of Pins

24

Weight

3.735305g

Number of Elements

1

Packaging

Rail/Tube

JESD-609 Code

e4

Pbfree Code

yes

Number of Terminations

24

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature

125°C

Min Operating Temperature

-55°C

Additional Feature

COMMON I/O PINS, SERIAL INPUT-PARALLEL OUTPUT AND SERIAL INPUT-SERIAL OUTPUT OPERATION AVAILABLE

Terminal Position

DUAL

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

2.54mm

Pin Count

24

Operating Supply Voltage

15V

Temperature Grade

MILITARY

Max Supply Voltage

18V

Min Supply Voltage

3V

Propagation Delay

170 ns

Turn On Delay Time

700 ns

Logic Function

Shift Register

Direction

Bidirectional

Output Characteristics

3-STATE

Output Polarity

TRUE

Logic IC Type

PARALLEL IN PARALLEL OUT

Number of Bits per Element

8

Trigger Type

POSITIVE EDGE

Number of Input Lines

9

fmax-Min

7 MHz

Max Frequency@Nom-Sup

2000000Hz

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
