Mount

Surface Mount

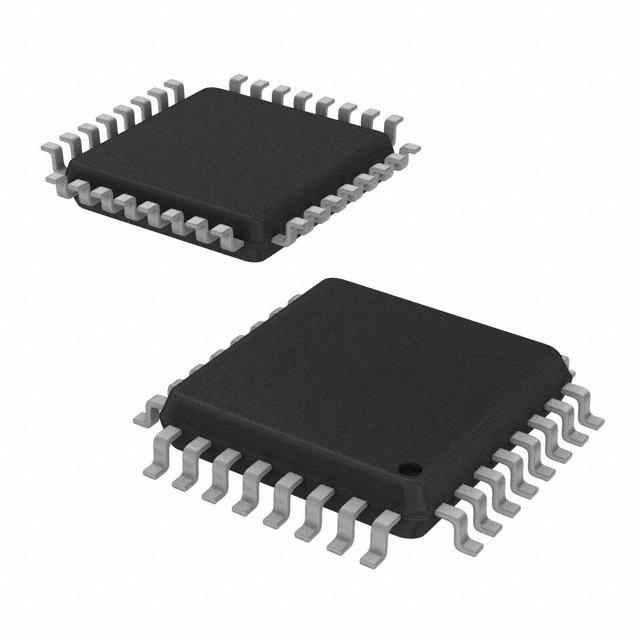

Package / Case

TQFP

Number of Pins

32

Frequency(Max)

250MHz

Published

2004

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

32

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Additional Feature

ALSO OPERATES AT 3.3V SUPPLY

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

2.5V

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

32

Power Supplies

2.5/3.3V

Temperature Grade

INDUSTRIAL

Number of Circuits

1

Max Supply Voltage

3.465V

Min Supply Voltage

2.375V

Quiescent Current

2mA

Family

9456

Output Characteristics

3-STATE

Input

LVCMOS

Logic IC Type

LOW SKEW CLOCK DRIVER

Propagation Delay (tpd)

5.6 ns

Same Edge Skew-Max (tskwd)

0.35 ns

Number of True Outputs

10

Length

7mm

Width

7mm

Thickness

1.4mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
