Mount

Surface Mount

Package / Case

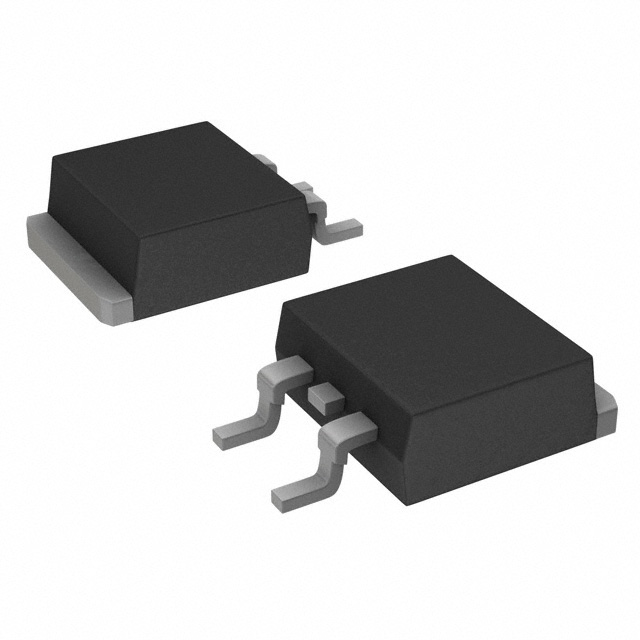

D2PAK

Number of Pins

3

Power Dissipation (Max)

1.56W

Packaging

Bulk

Published

2001

JESD-609 Code

e0

Pbfree Code

no

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

ECCN Code

EAR99

Resistance

45mOhm

Terminal Finish

TIN LEAD

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

225

Number of Functions

1

Supply Voltage

14V

Terminal Pitch

2.54mm

Current Rating

2.8A

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

4

JESD-30 Code

R-PSSO-G2

Qualification Status

Not Qualified

Max Output Current

2.8A

Operating Supply Voltage

35V

Temperature Grade

AUTOMOTIVE

Number of Channels

1

Interface

On/Off

Max Supply Voltage

6V

Min Supply Voltage

4V

Nominal Supply Current

10mA

Output Configuration

Low Side

Power Dissipation

1.56W

Current - Output

2.2A

Output Current per Channel

2.8A

Rise Time

1μs

Fall Time (Typ)

1.5 μs

Driver Number of Bits

1

Fault Protection

Over Temperature

Turn On Time

0.6 µs

Output Peak Current Limit-Nom

10A

Drain to Source Resistance

60mOhm

Built-in Protections

OVER CURRENT; THERMAL

Output Current Flow Direction

SINK

Height Seated (Max)

4.69mm

Width

8.79mm

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
