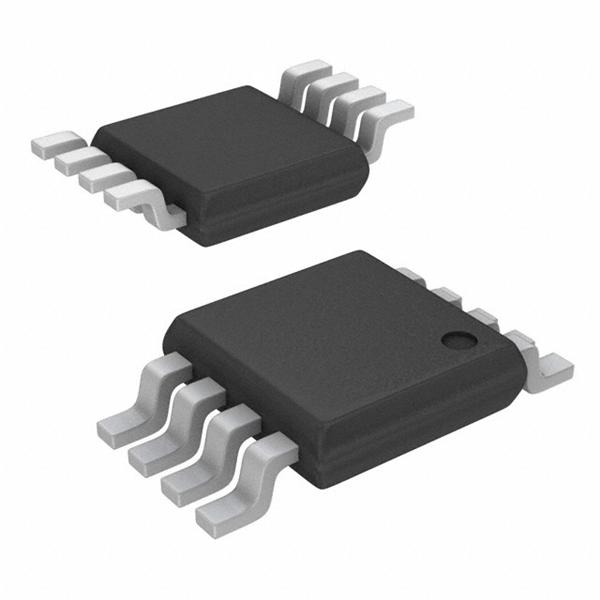

Package / Case

MSOP

Surface Mount

YES

Number of Pins

8

Current - Supply (Nom)

18μA

JESD-609 Code

e3

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

3V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

40

Pin Count

8

Current - Supply (Max)

18μA

Qualification Status

Not Qualified

Temperature Grade

INDUSTRIAL

Number of Channels

1

Max Supply Voltage

5.5V

Min Supply Voltage

1.8V

Analog IC - Other Type

ANALOG CIRCUIT

Current - Output

3mA

Response Time

4 μs

Current - Input Bias

100pA

Output Current per Channel

3mA

Input Offset Voltage (Vos)

1.5mV

Gain Bandwidth Product

90 kHz

Length

3mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
