Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

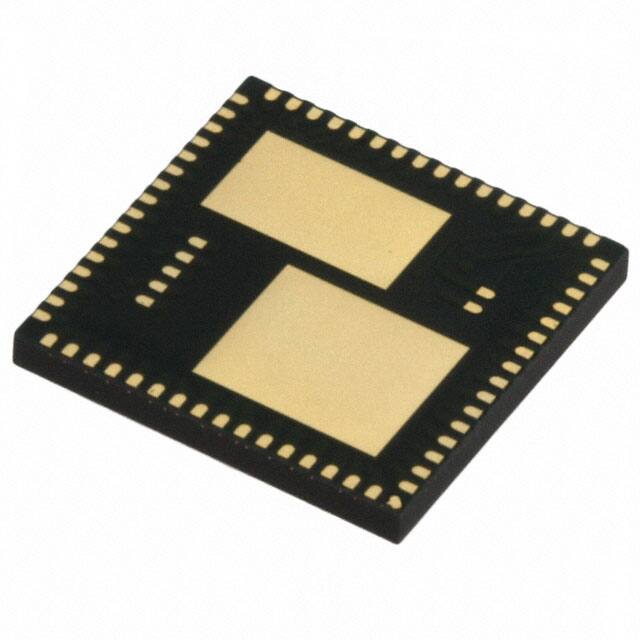

Package / Case

71-VFLGA Exposed Pad

Surface Mount

YES

Operating Temperature

-40°C~85°C

Packaging

Tray

Published

2004

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

71

ECCN Code

3A991.A.2

Type

TxRx + MCU

HTS Code

8542.31.00.01

Voltage - Supply

2V~3.4V

Terminal Position

BOTTOM

Terminal Form

BUTT

Peak Reflow Temperature (Cel)

250

Supply Voltage

2.7V

Terminal Pitch

0.5mm

Frequency

2.4GHz

Time@Peak Reflow Temperature-Max (s)

30

JESD-30 Code

S-PBGA-B71

Qualification Status

Not Qualified

Memory Size

60kB Flash 4kB RAM

Protocol

Zigbee®

Power - Output

3dBm

RF Family/Standard

802.15.4

Sensitivity

-92dBm

Data Rate (Max)

250kbps

Serial Interfaces

I2C, SPI

Current - Receiving

37mA

Current - Transmitting

30mA

Modulation

DSSS, O-QPSK

GPIO

32

Length

9mm

Height Seated (Max)

1mm

Width

9mm

RoHS Status

ROHS3 Compliant
