Factory Lead Time

7 Weeks

Mount

Surface Mount

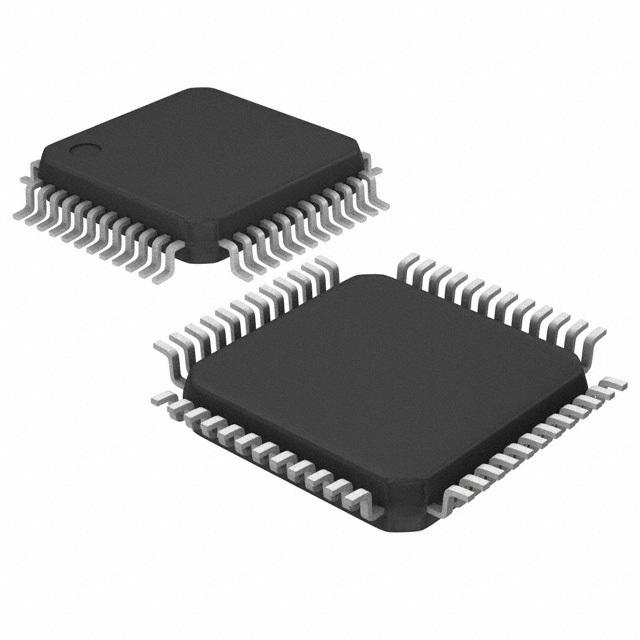

Package / Case

LQFP

Number of Pins

48

Frequency(Max)

500MHz

Published

2007

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

48

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Max Operating Temperature

70°C

Min Operating Temperature

0°C

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

48

Qualification Status

Not Qualified

Operating Supply Voltage

3.3V

Temperature Grade

COMMERCIAL

Number of Circuits

1

Max Supply Voltage

3.465V

Min Supply Voltage

3.135V

Family

8530

Input

LVDS

Logic IC Type

LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup

2 ns

Propagation Delay (tpd)

2 ns

Same Edge Skew-Max (tskwd)

0.075 ns

Number of True Outputs

16

Length

7mm

Width

7mm

Thickness

1.4mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
