Mount

Surface Mount

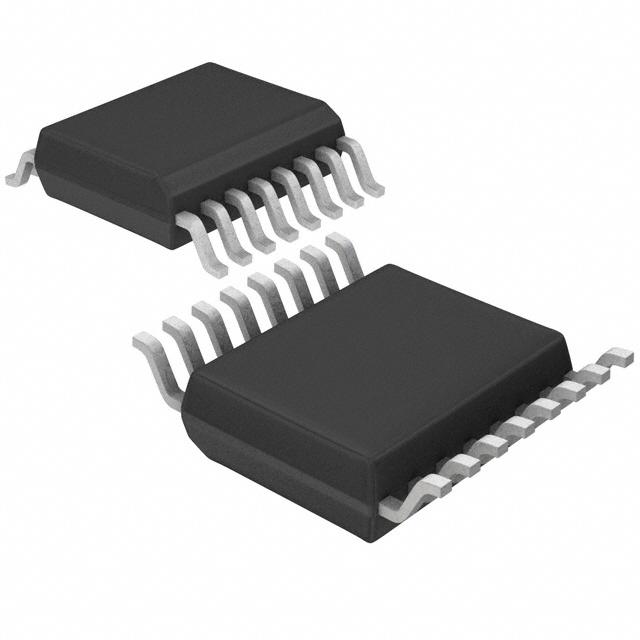

Package / Case

TSSOP

Operating Temperature (Max.)

85°C

Operating Temperature (Min.)

-40°C

Packaging

Tape & Reel (TR)

Published

1999

JESD-609 Code

e0

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn85Pb15)

HTS Code

8542.39.00.01

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

3.3V

Terminal Pitch

0.65mm

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

16

JESD-30 Code

R-PDSO-G16

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

3.6V

Power Supplies

3.3V

Temperature Grade

INDUSTRIAL

Supply Voltage-Min (Vsup)

3V

uPs/uCs/Peripheral ICs Type

CLOCK GENERATOR, VIDEO

Primary Clock/Crystal Frequency-Nom

125MHz

Output Clock Frequency-Max

125MHz

Length

5mm

Height Seated (Max)

1.2mm

Width

4.4mm

RoHS Status

Non-RoHS Compliant
