Surface Mount

YES

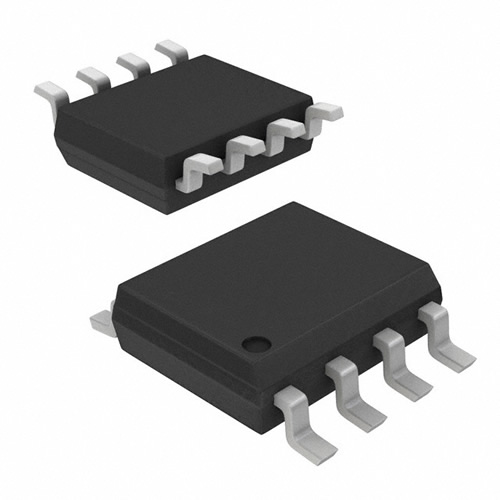

Package / Case

SOIC

Number of Pins

8

Weight

75.891673mg

Frequency - Gain Bandwidth Product (GBP)

110MHz

Number of Elements

1

Operating Temperature (Min)

-40°C

Operating Temperature (Max)

85°C

Packaging

Rail/Tube

JESD-609 Code

e4

Moisture Sensitivity Level (MSL)

2 (1 Year)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Supply

5V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Temperature Grade

INDUSTRIAL

Supply Current-Max

5.9mA

Current - Supply

4.25mA

Slew Rate

550 V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio

76 dB

Current - Input Bias

10nA

Output Current per Channel

85mA

Input Offset Voltage (Vos)

1.5mV

Bandwidth

110MHz

Neg Supply Voltage-Nom (Vsup)

-5V

Unity Gain BW-Nom

110000 kHz

Voltage Gain

72dB

Power Supply Rejection Ratio (PSRR)

61dB

Low-Offset

NO

Frequency Compensation

YES

Max Dual Supply Voltage

5.5V

Low-Bias

NO

Micropower

NO

-3db Bandwidth

310MHz

Min Dual Supply Voltage

1.4V

Programmable Power

NO

Dual Supply Voltage

5V

Max I/O Voltage

500μV

Voltage - Supply (Max)

11V

Voltage - Supply (Min)

2.8V

Height

1.58mm

Width

3.91mm

Length

4.9mm

RoHS Status

RoHS Compliant

Radiation Hardening

No

Lead Free

Lead Free
