Mount

Surface Mount

Mounting Type

Surface Mount

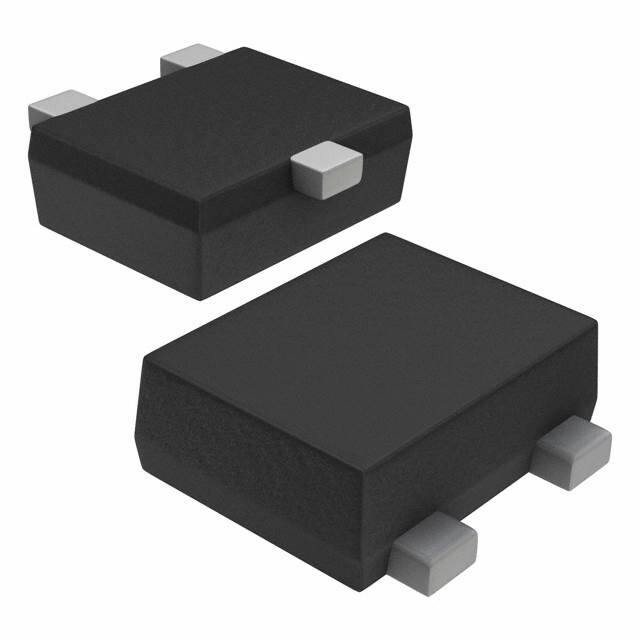

Package / Case

SOT-663

Number of Pins

3

Diode Element Material

SILICON

Breakdown Voltage / V

6.1V

Number of Elements

2

Reverse Stand-off Voltage

3V

Operating Temperature

-40°C~150°C TJ

Packaging

Cut Tape (CT)

Series

ESDA, TRANSIL™

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Termination

SMD/SMT

ECCN Code

EAR99

Type

Zener

Terminal Finish

MATTE TIN

Applications

General Purpose

Additional Feature

LOW CAPACITANCE, LOW LEAKAGE CURRENT

HTS Code

8541.10.00.50

Capacitance

7.5pF

Power Rating

30W

Voltage - Rated DC

6.1V

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Depth

850μm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

ESDALC6V1

Pin Count

3

Operating Supply Voltage

3V

Working Voltage

3V

Leakage Current

100nA

Element Configuration

Common Anode

Power Line Protection

No

Peak Pulse Power

30W

Direction

Unidirectional

Rep Pk Reverse Voltage-Max

3V

Max Breakdown Voltage

7.2V

Number of Unidirectional Channels

2

Length

1.6mm

Width

850μm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
