Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

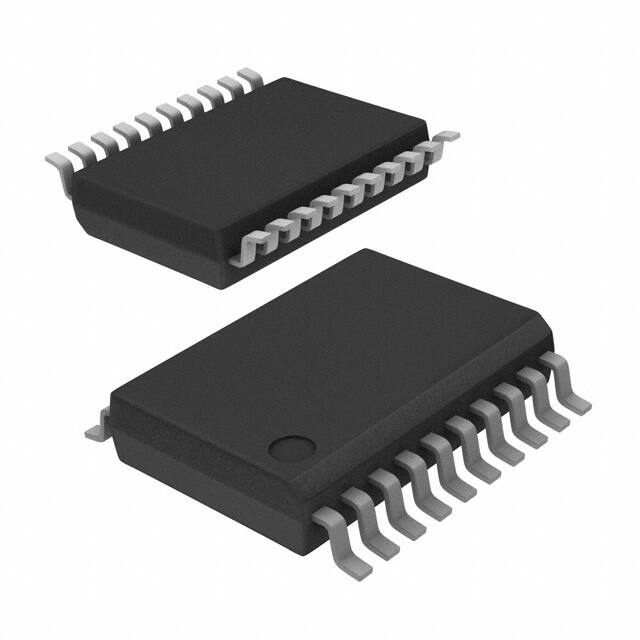

Package / Case

20-SSOP (0.240, 6.10mm Width)

Number of Pins

20

Turn Off Delay Time

150 ns

Usage Level

Automotive grade

Operating Temperature

-40°C~125°C

Packaging

Tape & Reel (TR)

Series

Automotive, AEC-Q100

Published

2015

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Max Power Dissipation

1.19W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Terminal Pitch

0.635mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

2

Qualification Status

Not Qualified

Approval Agency

UR

Voltage - Isolation

2500Vrms

Max Output Current

1A

Number of Channels

1

Max Supply Current

3.2mA

Propagation Delay

150 ns

Turn On Delay Time

160 ns

Rise / Fall Time (Typ)

50ns 50ns

Interface IC Type

BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

Propagation Delay tpLH / tpHL (Max)

150ns, 150ns

Common Mode Transient Immunity (Min)

100kV/μs

Voltage - Output Supply

10V~24V

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
