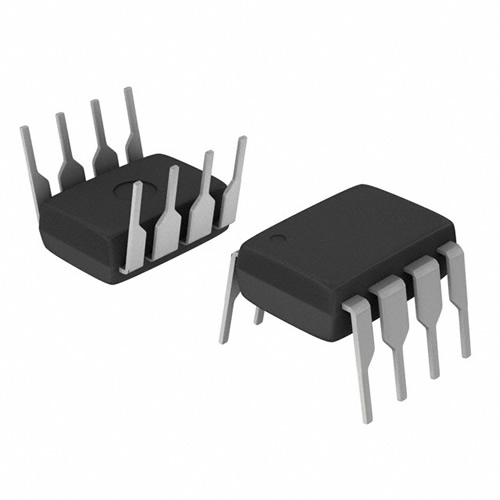

Package / Case

PDIP

Surface Mount

NO

Number of Pins

8

Frequency - Gain Bandwidth Product (GBP)

1.2MHz

Operating Temperature (Max)

85°C

Operating Temperature (Min)

-40°C

Current - Supply (Nom)

300μA

Number of Elements

1

Packaging

Rail/Tube

JESD-609 Code

e4

Pbfree Code

yes

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Supply

20V

Terminal Position

DUAL

Terminal Form

THROUGH-HOLE

Number of Functions

1

Terminal Pitch

2.54mm

Temperature Grade

INDUSTRIAL

Power Dissipation

1W

Current - Supply

240μA

Slew Rate

0.5 V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio

85 dB

Current - Input Bias

70nA

Output Current per Channel

20mA

Input Offset Voltage (Vos)

600μV

Bandwidth

1.2MHz

Neg Supply Voltage-Nom (Vsup)

-15V

Unity Gain BW-Nom

2000 kHz

Voltage Gain

123.52dB

Average Bias Current-Max (IIB)

0.09μA

Low-Offset

YES

Frequency Compensation

YES

Max Dual Supply Voltage

20V

Micropower

YES

Min Dual Supply Voltage

2V

Bias Current-Max (IIB) @25C

0.07μA

Nominal Gain Bandwidth Product

1.2MHz

Max I/O Voltage

600μV

Voltage - Supply (Max)

40V

Voltage - Supply (Min)

4V

Length

9.59mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
