Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

11 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

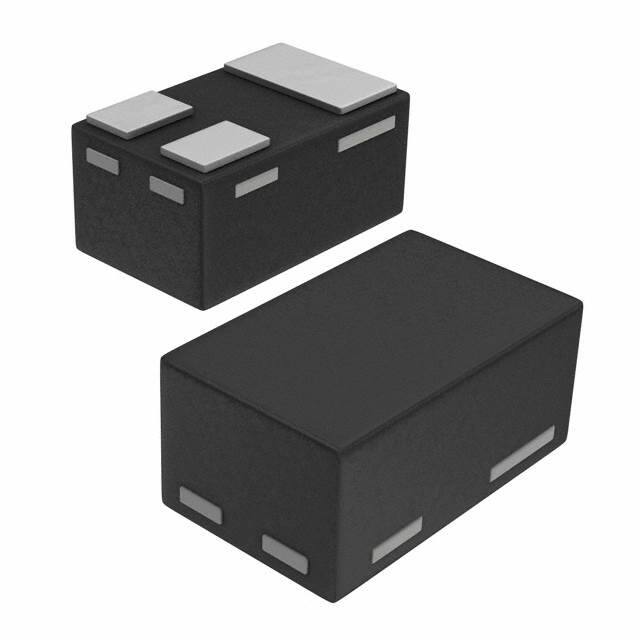

Package / Case

SC-101, SOT-883

Number of Pins

3

Diode Element Material

SILICON

Breakdown Voltage / V

6.1V

Number of Elements

2

Reverse Stand-off Voltage

5V

Operating Temperature

-40°C~125°C TJ

Packaging

Tape & Reel (TR)

Series

ESDA, TRANSIL™

JESD-609 Code

e4

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Termination

SMD/SMT

ECCN Code

EAR99

Type

Zener

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Applications

General Purpose

Additional Feature

LOW LEAKAGE CURRENT

HTS Code

8541.10.00.50

Capacitance

11pF

Power Rating

30W

Voltage - Rated DC

6.1V

Terminal Position

BOTTOM

Peak Reflow Temperature (Cel)

260

Depth

600μm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

ESDALC6V1

Pin Count

236

Operating Supply Voltage

5V

Leakage Current

500nA

Element Configuration

Common Anode

Case Connection

CATHODE

Power Line Protection

No

Peak Pulse Current

3A

Max Surge Current

3A

Peak Pulse Power

30W

Direction

Unidirectional

Test Current

1mA

Capacitance @ Frequency

11pF @ 1MHz

Reverse Breakdown Voltage

6.1V

Max Breakdown Voltage

7.2V

Length

1mm

Width

600μm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
