Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

11 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

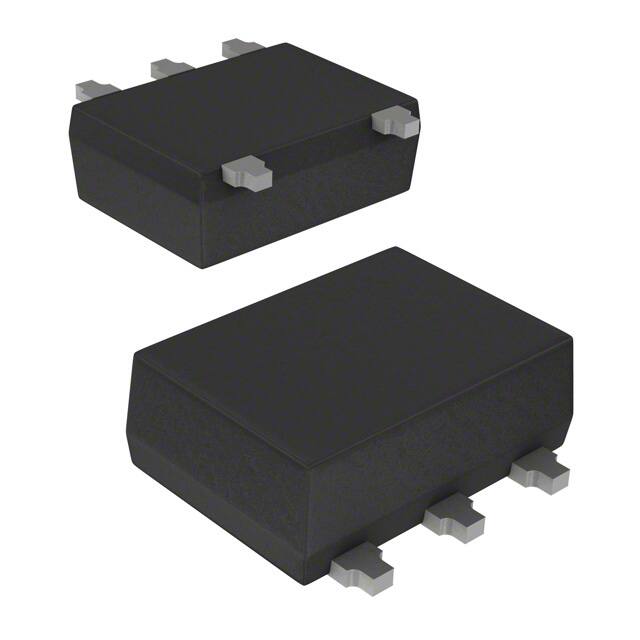

Package / Case

SOT-665

Number of Pins

5

Weight

4.535924g

Diode Element Material

SILICON

Breakdown Voltage / V

6.1V

Number of Elements

4

Reverse Stand-off Voltage

3V

Operating Temperature

-40°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

ESDA, TRANSIL™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

ECCN Code

EAR99

Type

Zener

Terminal Finish

Matte Tin (Sn)

Applications

General Purpose

Capacitance

7.5pF

Power Rating

30W

Voltage - Rated DC

6.1V

Max Power Dissipation

30W

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

260

Depth

1.3mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

ESDALC6V1

Pin Count

5

Operating Supply Voltage

3V

Working Voltage

3V

Leakage Current

100nA

Power Line Protection

No

Peak Pulse Power

30W

Direction

Unidirectional

Test Current

1mA

Reverse Breakdown Voltage

6.1V

Max Breakdown Voltage

7.2V

Number of Unidirectional Channels

4

Height

6.35mm

Length

1.7mm

Width

6.35mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
