Factory Lead Time

7 Weeks

Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

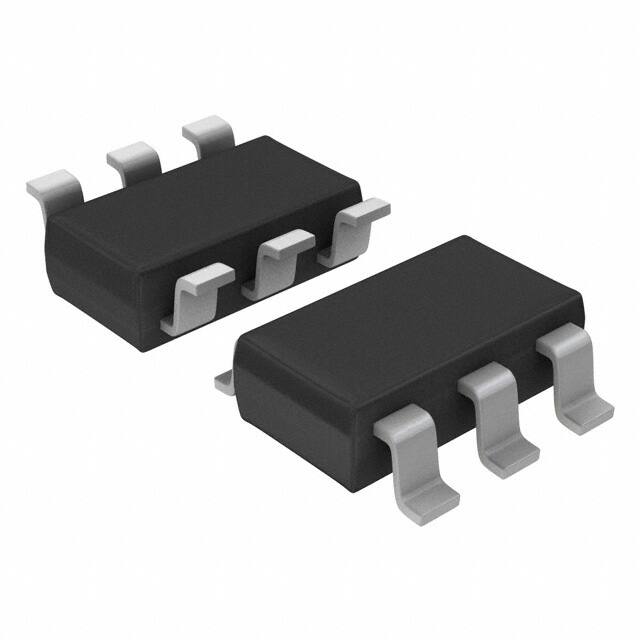

Package / Case

SOT-23-6 Thin, TSOT-23-6

Surface Mount

YES

Mounting Type

Surface Mount

Contact Plating

Tin

Number of Pins

6

Diode Element Material

SILICON

Reverse Stand-off Voltage

12V

Number of Elements

5

Breakdown Voltage / V

13.3V

Operating Temperature

-40°C~150°C TJ

Packaging

Tape & Reel (TR)

Published

1997

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

SMD/SMT

ECCN Code

EAR99

Type

Zener

Applications

General Purpose

Capacitance

120pF

Power Rating

350W

Voltage - Rated DC

12V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Depth

1.5mm

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

SMS*C

Pin Count

6

Operating Supply Voltage

12V

Working Voltage

12V

Polarity

Bidirectional, Unidirectional

Leakage Current

1μA

Element Configuration

Common Anode

Power Dissipation

350W

Power Line Protection

No

Current - Peak Pulse (10/1000μs)

15A 8/20μs

Max Reverse Leakage Current

1μA

Clamping Voltage

23V

Voltage - Reverse Standoff (Typ)

12V Max

Peak Pulse Current

15A

Max Surge Current

15A

Peak Pulse Power

350W

Direction

Unidirectional

Halogen Free

Halogen Free

Test Current

1mA

Capacitance @ Frequency

120pF @ 1MHz

Number of Lines

5

Max Breakdown Voltage

15V

ESD Protection

Yes

Width

1.7mm

Length

3mm

Height

1mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
