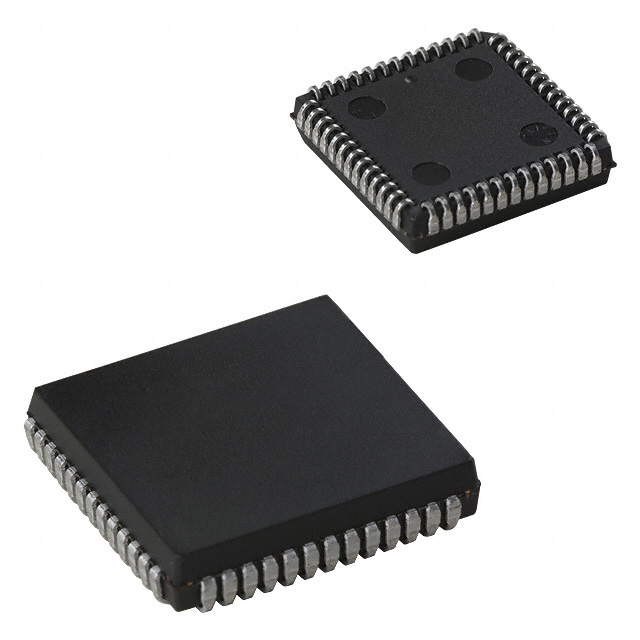

Package / Case

PLCC

Surface Mount

YES

Memory Types

FLASH

Number of I/Os

27

Published

1999

JESD-609 Code

e0

Number of Terminations

52

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Max Operating Temperature

70°C

Min Operating Temperature

0°C

HTS Code

8542.39.00.01

Terminal Position

QUAD

Terminal Form

J BEND

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

3.3V

Terminal Pitch

1.27mm

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

52

JESD-30 Code

S-PQCC-J52

Qualification Status

Not Qualified

Temperature Grade

COMMERCIAL

Max Supply Voltage

3.6V

Min Supply Voltage

3V

Number of Ports

4

uPs/uCs/Peripheral ICs Type

PARALLEL IO PORT, GENERAL PURPOSE

Standby Current-Max

0.0001A

Number of Gates

2000

Access Time (Max)

9e-8 ns

UV Erasable

N

ROM Size (bits)

2359296Bits

Length

19.1262mm

Height Seated (Max)

4.57mm

Width

19.1262mm

RoHS Status

Non-RoHS Compliant
