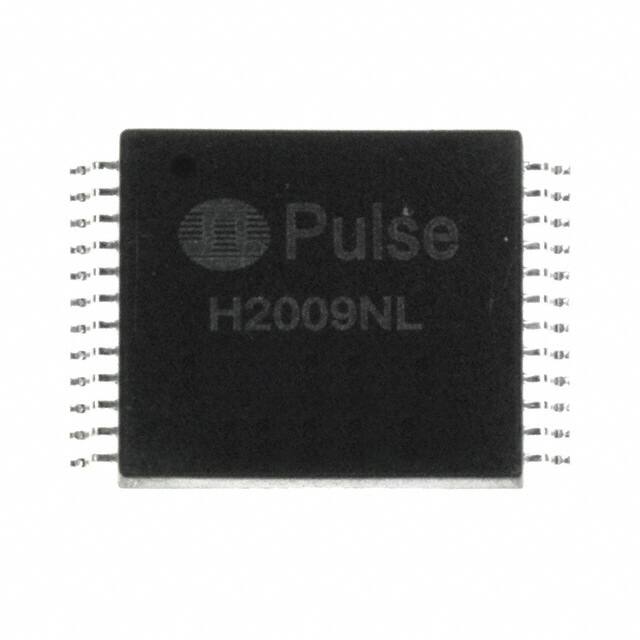

Factory Lead Time

11 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

Module

Number of Pins

24

Weight

0.06oz 1.71g

Operating Frequency (Max)

100000kHz

Operating Temperature

0°C~70°C

Packaging

Tube

Published

2009

Size / Dimension

0.518Lx0.595W 13.16mmx15.11mm

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

SMD/SMT

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

10/100 BASE-TX; ETHERNET

Additional Feature

HEIGHT DIM INCLUDES TERMINALS ALSO

Number of Functions

2

Depth

15.11mm

Approval Agency

UL

Physical Dimension

L15.11XB13.16XH6.12 (mm)

DC Resistance (DCR)

3.5Ohm

Lead/Base Style

Gull Wing

Operating Frequency-Min

1000kHz

Insertion Loss (dB)

-1.1 dB

Isolation Voltage

1.5kV

Transformer Type

Isolation and Data Interface (Encapsulated)

Turns Ratio - Primary:Secondary

1:1

Return Loss

-12 dB

Number of Primary Winding

4

Height

6.12mm

Height Seated (Max)

0.251 6.37mm

Width

13.16mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
