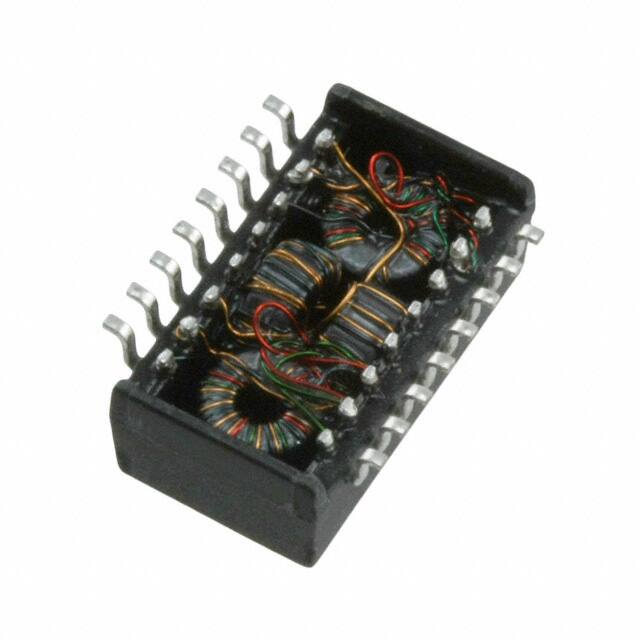

Factory Lead Time

11 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

SMD/SMT

Number of Pins

16

Weight

0.03oz 0.85g

Published

2009

Packaging

Tube

Operating Temperature

0°C~70°C

Size / Dimension

0.495Lx0.280W 12.57mmx7.11mm

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

10 BASE-T

Additional Feature

HEIGHT DIM INCLUDES TERMINALS ALSO

Shielding

Unshielded

Number of Functions

1

Depth

9.4mm

Approval Agency

UL

Physical Dimension

L12.7XB7.24XH5.08 (mm)

Inductance

200μH

DC Resistance (DCR)

400mOhm

Lead/Base Style

Gull Wing

Isolation Voltage

2kV

Transformer Type

Isolation and Data Interface (Encapsulated)

Turns Ratio - Primary:Secondary

1:2.5

Number of Secondary Winding

22

Number of Primary Winding

2

Load Resistance

0.6Ohm

Height

5.08mm

Height Seated (Max)

0.210 5.33mm

Length

12.7mm

Width

7.24mm

RoHS Status

RoHS Compliant

Radiation Hardening

No
