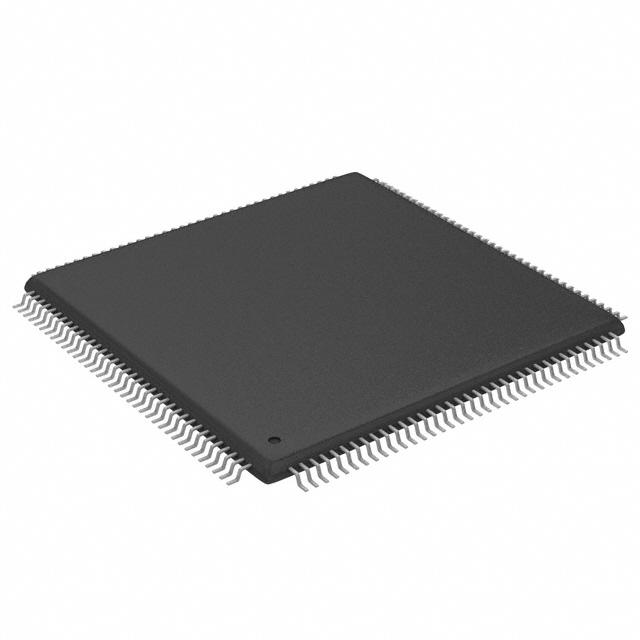

Package / Case

TQFP

Mount

Surface Mount

Number of Pins

144

Operating Temperature (Min.)

-40°C

Operating Temperature (Max.)

118°C

Published

1998

Packaging

Bulk

JESD-609 Code

e0

Pbfree Code

no

Part Status

Discontinued

Number of Terminations

144

ECCN Code

3A001.A.3

Terminal Finish

Tin/Lead (Sn/Pb)

HTS Code

8542.31.00.01

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

5V

Terminal Pitch

0.5mm

Frequency

33MHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

144

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Voltage

5V

Max Supply Voltage

5.5V

Min Supply Voltage

4.5V

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR

Supply Current-Max

320mA

Bit Size

32

Access Time

33 μs

Address Bus Width

26

Boundary Scan

YES

Low Power Mode

YES

External Data Bus Width

16

Format

FIXED POINT

Integrated Cache

NO

RAM (words)

0

Number of Serial I/Os

3

Number of External Interrupts

12

Number of DMA Channels

2

Width

20mm

Height Seated (Max)

1.7mm

Length

20mm

RoHS Status

Non-RoHS Compliant
