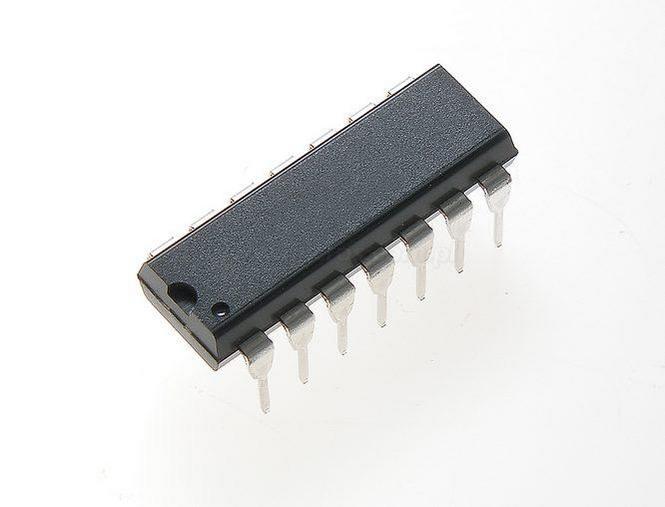

Package / Case

PDIP

Surface Mount

NO

Current - Supply (Nom)

2.5mA

Power Dissipation (Max)

1W

Published

2007

JESD-609 Code

e0

Number of Terminations

14

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Terminal Position

DUAL

Terminal Form

THROUGH-HOLE

Peak Reflow Temperature (Cel)

235

Number of Functions

4

Supply Voltage

5V

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

14

Current - Supply (Max)

2.5mA

Qualification Status

Not Qualified

Output Type

OPEN-COLLECTOR

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Number of Channels

4

Max Supply Voltage

30V

Min Supply Voltage

3V

Current - Output

16mA

Quiescent Current

800μA

Response Time

1.3 μs

Amplifier Type

COMPARATOR

Current - Input Bias

500nA

Output Current per Channel

16mA

Input Offset Voltage (Vos)

20mV

Voltage Gain

100dB

Average Bias Current-Max (IIB)

1μA

Length

18.86mm

Width

7.62mm

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
