Factory Lead Time

20 Weeks

Mount

Through Hole

Package / Case

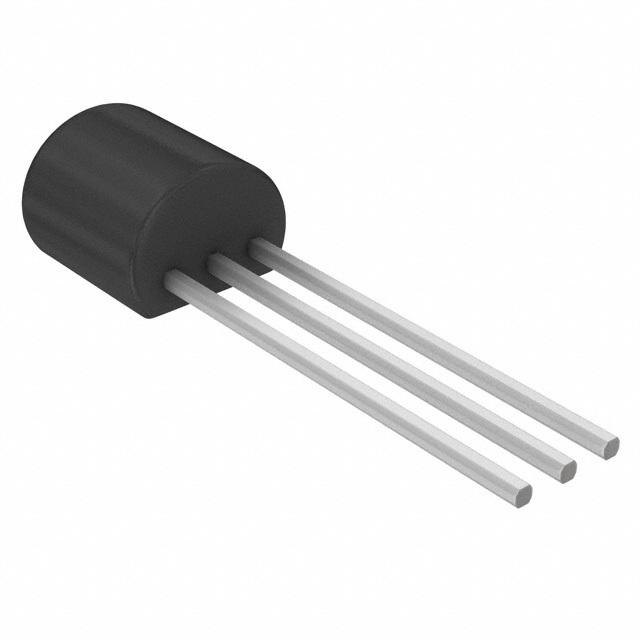

TO-92

Weight

453.59237mg

Number of Elements

1

Packaging

Bulk

Published

2004

JESD-609 Code

e0

Pbfree Code

no

Part Status

Active

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Max Operating Temperature

125°C

Min Operating Temperature

-40°C

HTS Code

8541.30.00.80

Terminal Position

BOTTOM

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

3

JESD-30 Code

O-PBCY-T3

Qualification Status

Not Qualified

Configuration

SINGLE

Forward Voltage

1.7V

RMS Current (Irms)

800mA

Hold Current

5mA

Trigger Device Type

SCR

On-State Current-Max

510A

Repetitive Peak Off-state Voltage

150V

Leakage Current (Max)

0.01mA

Non-Repetitive Pk On-state Cur

10 A

Repetitive Peak Reverse Voltage

150V

RMS On-state Current-Max

0.8A

DC Gate Trigger Current-Max

0.2mA

DC Gate Trigger Voltage-Max

0.8V

Circuit Commutated Turn-off Time-Nom

30 μs

RoHS Status

RoHS Compliant
