Mount

Surface Mount

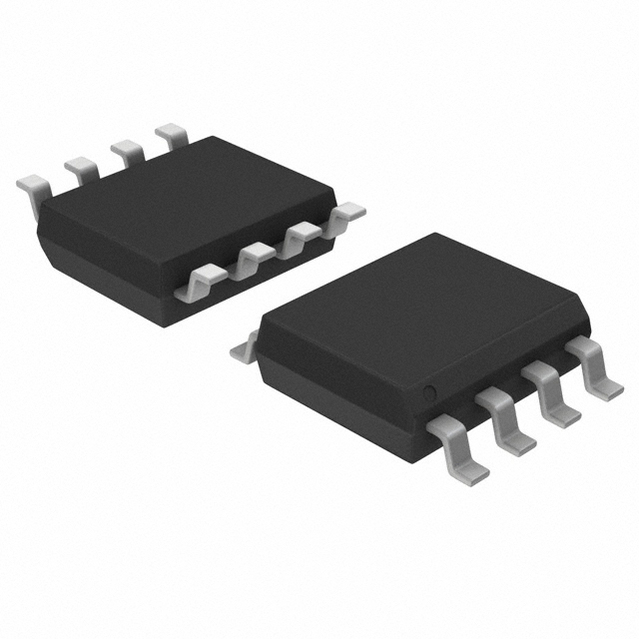

Package / Case

SOIC

Number of Pins

8

Published

2012

Tolerance

0.5%

JESD-609 Code

e0

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Temperature Coefficient

54 ppm/°C

Max Operating Temperature

70°C

Min Operating Temperature

0°C

Additional Feature

OUTPUT VOLTAGE ADJUSTABLE FROM 2.5 TO 36V WITH TWO EXTERNAL RESISTORS

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

235

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

30

Number of Outputs

1

Output Voltage

2.5V

Max Output Current

100mA

Temperature Grade

COMMERCIAL

Number of Channels

1

Trim/Adjustable Output

YES

Analog IC - Other Type

TWO TERMINAL VOLTAGE REFERENCE

Current - Output

100mA

Voltage - Output

37V

Max Input Voltage

37V

Reference Type

Adjustable, Shunt

Current - Cathode

1mA

Length

4.9mm

Width

3.9mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
