Factory Lead Time

7 Weeks

Contact Plating

Lead, Tin

Mount

Surface Mount

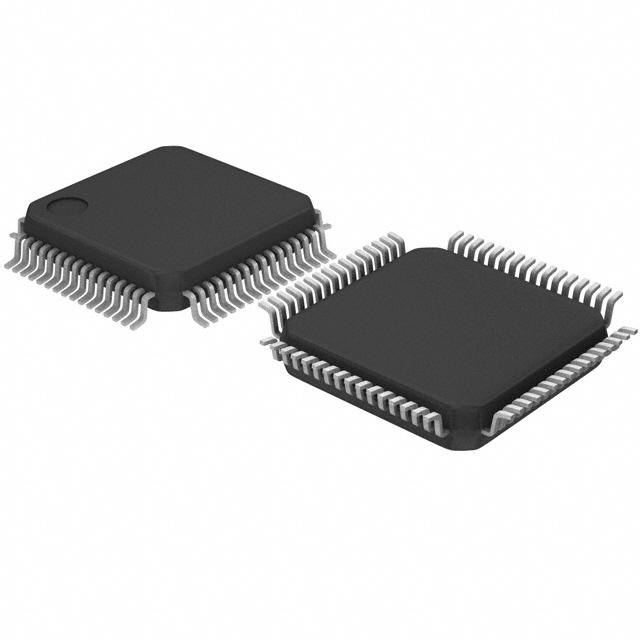

Package / Case

TQFP

Number of Pins

64

Frequency(Max)

50MHz

Current - Supply (Nom)

80mA

Published

2001

JESD-609 Code

e0

Pbfree Code

no

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

64

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn85Pb15)

Max Operating Temperature

70°C

Min Operating Temperature

0°C

Additional Feature

RETRANSMIT; AUTO POWER DOWN; EASY EXPANDABLE IN DEPTH AND WIDTH

HTS Code

8542.32.00.71

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

0.8mm

Frequency

50MHz

Time@Peak Reflow Temperature-Max (s)

20

Pin Count

64

Current - Supply (Max)

80mA

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

5V

Temperature Grade

COMMERCIAL

Element Configuration

Dual

Access Time

12 ns

Organization

8KX18

Density

144 kb

Standby Current-Max

0.017A

Parallel/Serial

PARALLEL

Sync/Async

Synchronous

Word Size

18b

Memory IC Type

OTHER FIFO

Bus Directional

Unidirectional

Retransmit Capability

Yes

Voltage - Supply (Max)

5.5V

Voltage - Supply (Min)

4V

Output Enable

YES

Cycle Time

20 ns

Length

14mm

Height Seated (Max)

1.6mm

Width

14mm

Thickness

1.4mm

RoHS Status

RoHS Compliant

Lead Free

Contains Lead
