Mount

Surface Mount

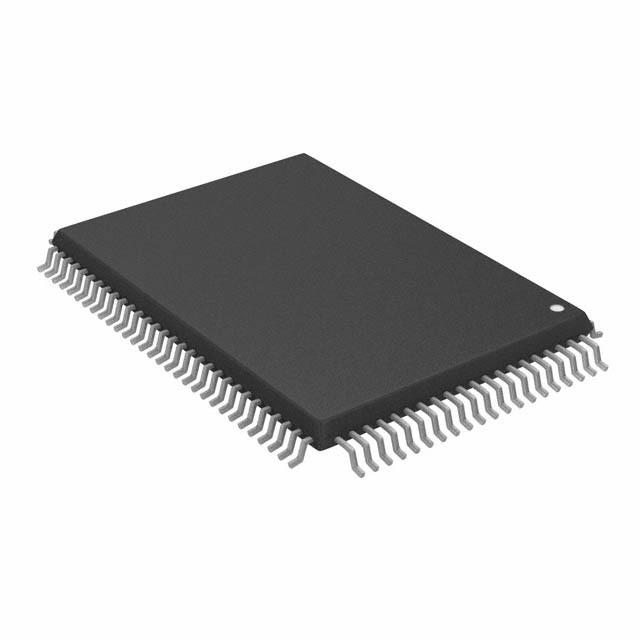

Package / Case

QFP

Operating Temperature (Max.)

85°C

Operating Temperature (Min.)

-40°C

Packaging

Bulk

Published

1996

JESD-609 Code

e0

Part Status

Discontinued

Number of Terminations

100

ECCN Code

3A991.A.2

Terminal Finish

Tin/Lead (Sn/Pb)

Additional Feature

DRAM REFRESH CONTROLLER; 3 PROGRAMMABLE TIMERS; EMULATION HARDWARE

HTS Code

8542.31.00.01

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

5V

Terminal Pitch

0.65mm

Frequency

20MHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

100

Qualification Status

Not Qualified

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Voltage

5V

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR

Supply Current-Max

100mA

Bit Size

16

Access Time

20 μs

Address Bus Width

20

Boundary Scan

NO

Low Power Mode

YES

External Data Bus Width

8

Format

FIXED POINT

Integrated Cache

NO

RAM (words)

0

Number of Serial I/Os

2

Number of External Interrupts

9

Number of DMA Channels

4

Length

20mm

Height Seated (Max)

3.15mm

Width

14mm

RoHS Status

Non-RoHS Compliant
