Lifecycle Status

OBSOLETE (Last Updated: 4 days ago)

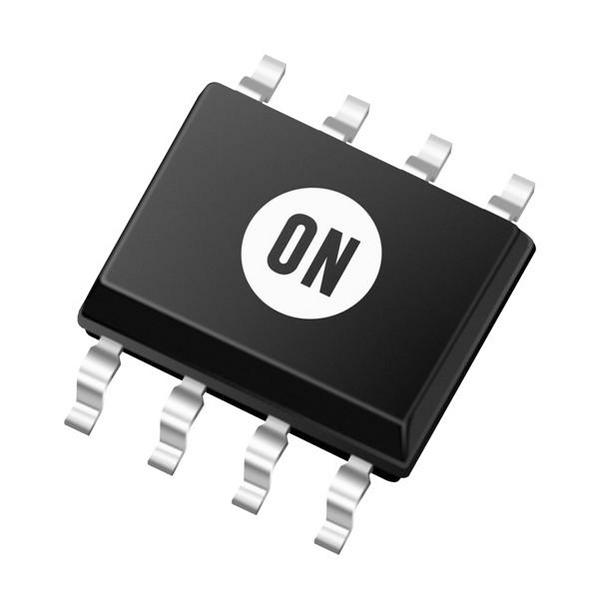

Package / Case

SOIC

Surface Mount

YES

Number of Pins

8

Current - Supply (Nom)

2.4mA

Power Dissipation (Max)

625mW

Published

2005

JESD-609 Code

e0

Pbfree Code

no

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Max Operating Temperature

85°C

Min Operating Temperature

-25°C

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

240

Number of Functions

1

Supply Voltage

15V

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

8

Current - Supply (Max)

2.4mA

Qualification Status

Not Qualified

Output Type

OPEN-COLLECTOR

Temperature Grade

OTHER

Number of Channels

1

Max Supply Voltage

36V

Min Supply Voltage

5V

Current - Output

50mA

Response Time

200 ns

Amplifier Type

COMPARATOR

Current - Input Bias

100nA

Output Current per Channel

2.4mA

Input Offset Voltage (Vos)

3mV

Neg Supply Voltage-Nom (Vsup)

-15V

Voltage Gain

106.02dB

Length

4.9mm

Width

3.9mm

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Lead Free

Lead Free
