Factory Lead Time

14 Weeks

Contact Plating

Tin

Mount

Surface Mount

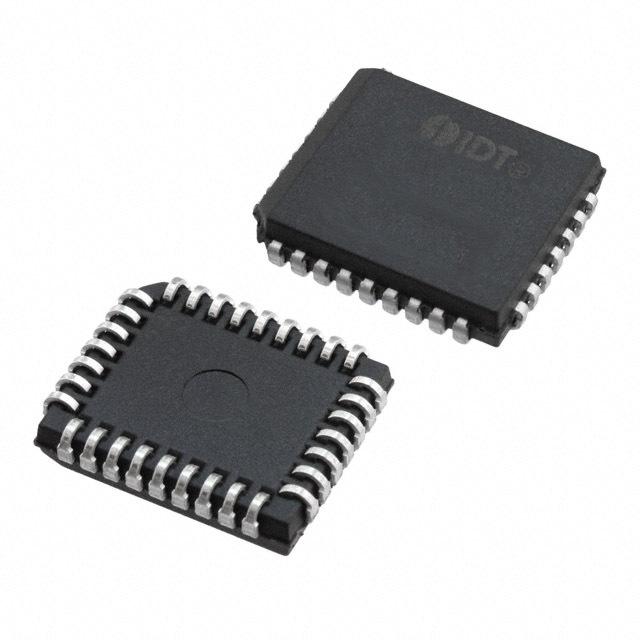

Package / Case

PLCC

Number of Pins

32

Published

2003

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

32

ECCN Code

EAR99

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Terminal Position

QUAD

Terminal Form

J BEND

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

5V

Terminal Pitch

1.27mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

32

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Interface

Serial

Max Supply Voltage

5.25V

Min Supply Voltage

4.75V

Nominal Supply Current

10μA

Operating Mode

SYNCHRONOUS

Resolution

1 B

Number of A/D Converters

4

Telecom IC Type

PCM CODEC

Filter

YES

Companding Law

A/MU-LAW

Gain Tolerance-Max

0.35dB

Length

13.97mm

Height Seated (Max)

3.56mm

Width

11.43mm

Thickness

2.79mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
